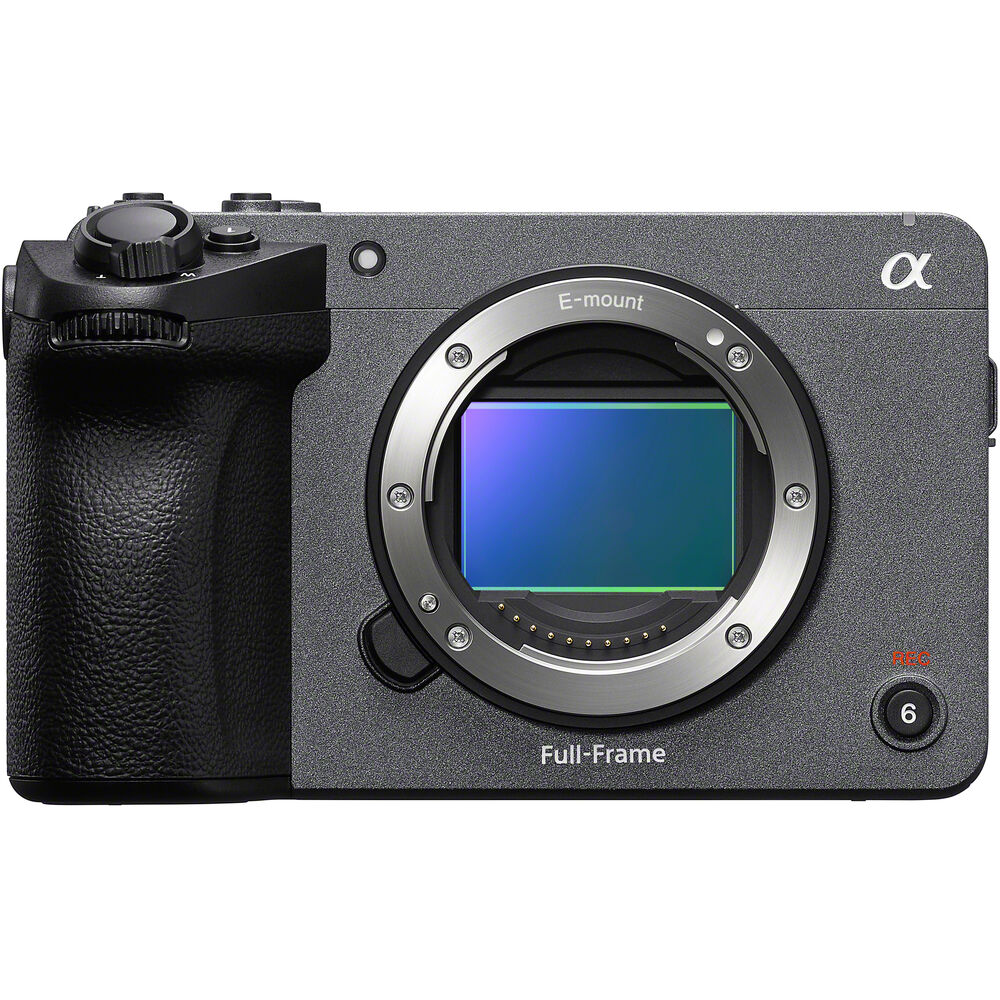

Sony FX5 Full-Frame Cinema Camera

Designed for filmmakers and content creators who demand uncompromising image quality in a compact form factor, the Sony FX5 Cinema Camera brings next-generation Cinema Line performance to productions of every scale. Powered by a newly developed 16.6MP full-frame stacked Exmor RS CMOS sensor, the advanced BIONZ XR2 image processor, and a dedicated AI Processing Unit, the FX5 delivers high-speed performance, remarkable low-light sensitivity, and professional cinema workflows for feature films, documentaries, commercials, and broadcast.

With support for internal 16-bit X-OCN RAW recording, 5K Open Gate capture, 15+ stops of dynamic range, and high-frame-rate recording up to 5K 120p and 4K 240p, the FX5 provides ultimate flexibility from acquisition to post-production.

Key Features & Highlights

• Cinematic Full-Frame Sensor: 16.6MP stacked Exmor RS CMOS sensor engineered for ultra-fast readout, drastically reduced rolling shutter, and rich color reproduction.

• BIONZ XR2 & AI Processing Unit: Dedicated AI processing enables real-time subject recognition and precise tracking across humans, animals, and birds.

• Internal 16-Bit X-OCN RAW: Capture scene-linear X-OCN (LT, C1, C2) internally without external recorders, delivering RAW flexibility with efficient file sizes.

• 5K Open Gate & High Frame Rates: Shoot full 3:2 sensor area at 5K up to 120fps or 4K up to 240fps for high-impact slow-motion and multi-format delivery.

• 15+ Stops Dynamic Range & Triple Base ISO: Features S-Log3 flexibility with Triple Base ISO (800 / 4000 / 12800) and Dual Gain Shooting for clean shadow detail in challenging lighting.

• Advanced In-Camera Monitoring: Built-in professional monitoring tools including Waveform, Vector Scope, False Color, Zebra Display, Focus Map, and Anamorphic De-Squeeze.

• In-Body Image Stabilization: 5-axis optical sensor-shift stabilization with Dynamic Active Mode for steady handheld shooting.

Detailed Product Breakdown

1. Advanced Imaging & AI Autofocus

At the core of the FX5 is Sony's newly developed full-frame sensor and BIONZ XR2 processing engine. Coupled with 759 phase-detection Fast Hybrid AF points and deep-learning AI recognition, the FX5 keeps fast-moving subjects pin-sharp even at wide apertures and low light levels.

2. Flexible Post-Production Workflows

The introduction of internal 16-bit X-OCN compressed RAW recording gives cinematographers over 280 trillion colors to work with in post-production while saving storage space. 5K Open Gate capture gives editors freedom to crop for vertical social media, 16:9 widescreen, or 2.39:1 anamorphic formats without loss of resolution.

3. Built for Rigorous On-Set Production

The compact body inherits the modular Cinema Line design:

• 4-Axis Multi-Angle Touch LCD: Bright 3.5-inch monitor optimized for high and low angle rigging.

• Comprehensive Connectivity: Dual USB-C ports, Full-Size HDMI Type-A, 2.5G Ethernet, and Timecode BNC adapter support.

• Dual Card Slots: Dual CFexpress Type A / SD UHS-II slots support continuous high-bitrate recording.

• Pro Audio Ready: Fully compatible with the optional XLR Top Handle Unit with support for 96kHz / 32-bit float 4-channel audio.

Core Specifications

• Sensor: 16.6MP Full-Frame Back-Illuminated Stacked Exmor RS CMOS

• Image Processor: BIONZ XR2 with integrated AI Processing Unit

• Dynamic Range: 15+ Stops (S-Log3)

• Base ISO: Triple Base ISO (800 / 4000 / 12800)

• Internal RAW: 16-bit Scene-Linear X-OCN (LT / C1 / C2)

• Max Video Resolution: 5K Open Gate (up to 120fps), 4K (up to 240fps)

• Autofocus Points: 759 Phase-Detection Points with AI Subject Recognition

• Stabilization: 5-Axis In-Body Sensor-Shift + Dynamic Active Mode

• Media Slots: Dual CFexpress Type A / SDXC UHS-II

• Weight: Approx. 750g (Body Only)

• 16.6MP Full-Frame Stacked Exmor RS CMOS Sensor
• BIONZ XR2 Image Processor with AI Processing Unit
• Internal 16-bit Scene-Linear X-OCN Recording
• 5K Open Gate Recording
• Up to 5K 120fps Recording
• Up to 4K 240fps High-Speed Video
• 15+ Stops Dynamic Range with S-Log3
• Three Base ISO Settings with Dual Gain Shooting
• Fast Hybrid AF with 759 Phase-Detection AF Points
• BIG6 Cinema User Interface
• 3.5" 4-Axis Multi-Angle Touchscreen LCD
• Dual CFexpress Type A / SD UHS-II Card Slots
• Professional Monitoring Tools
• Wi-Fi, Ethernet, Dual USB-C & Full-Size HDMI
